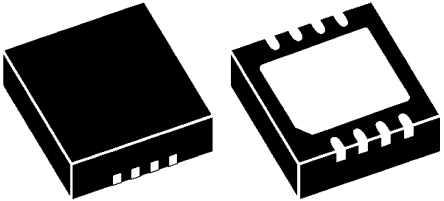

ST1S10PUR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC5035959
Category:
DC to DC Converter
Package:
DFN-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 18V Synchronous Step Down Single-Out 0.8V to 15.3V 3A 8Pin DFN EP T/R
Stock Locations:
Availability:
1,769 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST1S10PUR is a high-efficiency step-down PWM current-mode Switching Regulator capable of providing up to 3A of output current. The device operates with an input supply range from 2.5 to 18V. It operates either at a 900kHz fixed frequency or can be synchronized to an external clock (from 400kHz to 1.2MHz). The high switching frequency allows the use of tiny SMD external components, while the integrated synchronous rectifier eliminates the need for a Schottky diode. The ST1S10 provides excellent transient response and is fully protected against thermal overheating, switching overcurrent and output short-circuit.
Step-down current mode PWM regulator
Synchronous rectification
Inhibit function
Internal soft-start
Dynamic short-circuit protection
Maximum standby supply current of 6µA over temperature range
2% DC output voltage tolerance
90% Typical efficiency

Show

ST1S10PUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Number of Outputs	1 Output
Output Voltage	0.8V ~ 15.3V
Output Current	3 A
Number of Positions	8 Position
Quiescent Current	2.5 mA
Switching Frequency	900 kHz
Input Voltage (Max)	18 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	15.3 V
Output Voltage (Min)	800 mV
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5 V
Input Voltage	2.5V ~ 18V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
