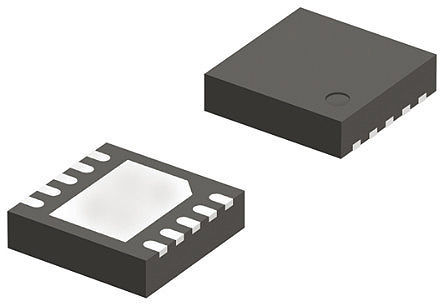

Image is for your reference only,please check specifications for details

ST1S50PUR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC53162996
Category:
DC to DC Converter
Package:
VFDFPN-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4V to 18V Step Down Single-Out 0.8V to 15.84V 4A 10Pin VFDFPN EP T/R
Stock Locations:
Availability:
1,117 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST1S50PUR is a monolithic synchronous step-down Switching Converter with high efficiency at light load. The synchronous step-down regulator operates from 4 to 18V input, while it regulates an output voltage as low as 0.8V and up to 0.88 x VIN. The ST1S50 device integrates a 95mR high-side switch and a 69mR synchronous rectifier allowing very high efficiency with very low output voltages. The peak current-mode control with a special PFM mode enables high efficiency at a light load.
High efficiency at light load
Programmable soft-start and enable
All ceramic capacitor
Power good function
Cycle-by-cycle current limiting
Short-circuit protection

Show

ST1S50PUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VFDFPN-8
Number of Outputs	1 Output
Output Voltage	0.8V ~ 15.84V
Output Current	4 A
Number of Positions	8 Position
Quiescent Current	600 µA
Switching Frequency	500 kHz
Switching Current	5.6 A
Input Voltage (Max)	18 V
Input Voltage (Min)	4 V
Output Voltage (Max)	15.84 V
Output Voltage (Min)	800 mV
Output Current (Max)	4 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4V ~ 18V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
