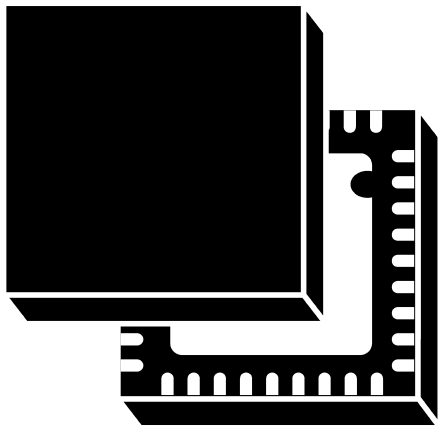

Image is for your reference only,please check specifications for details

STM32F103T6U7A - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC6623004
Category:
Microcontroller, MCU IC
Package:
VFQFN-36
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 36Pin VFQFPN EP Tray
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.28

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F103T6U7A low density incorporates the high-performance ARM Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memory, and an extensive range of enhanced I/Os and peripherals connected to two APB buses
Two 12-bit ADCs
Three general purpose 16-bit timers plus one PWM timer
Sleep, Stop and Standby modes
Dual-sample and hold capability
Temperature sensor
7-channel DMA controller
Serial wire debug & JTAG interfaces

Show

STM32F103T6U7A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	VFQFN-36
Frequency	72 MHz
Supply Voltage (DC)	2.00V (min)
Number of Positions	36 Position
Clock Speed	72.0 MHz
RAM Memory Size	10 KB
Number of Bits	32 Bit
FLASH Memory Size	32 KB
Number of ADCs	2 ADC
Number of Inputs and Outputs	26 Input IO
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	6.13 mm
Size-Width	6.125 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
