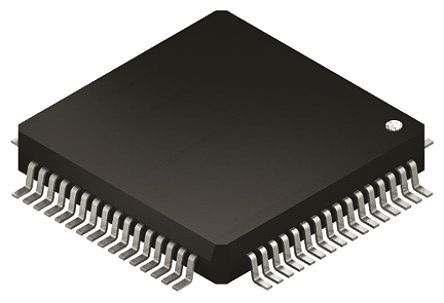

Image is for your reference only,please check specifications for details

STM32F205RBT7 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC43902400
Category:
Microcontroller, MCU IC
Package:
LQFP-64
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit STM32 ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 64Pin LQFP Tray
Stock Locations:
Availability:
1,042 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.58

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F205RBT7 is a 32-bit ARM-based Microcontroller Unit features an adaptive real-time memory accelerator which allows to achieve a performance equivalent to 0 wait state program execution from flash memory at a CPU frequency up to 120MHz. It is based on the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a frequency of 120MHz. This incorporates high-speed embedded memories up to 4kB of backup SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.
Clock, reset and supply management - POR, PDR, PVD and BOR
Low-power modes - Sleep, stop and standby modes
VBAT supply for RTC, 20 x 32-bit backup registers and optional 4kB backup SRAM
General-purpose DMA - 16-stream controller with centralized FIFOs and burst support
Debug mode - Serial wire debug (SWD), JTAG and Cortex-M3 embedded trace Macrocell™
8 to 14-bit parallel camera interface
CRC calculation unit
96-bit Unique ID
ESD sensitive device, take proper precaution while handling the device.

Show

STM32F205RBT7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LQFP-64
Frequency	120 MHz
Supply Voltage (DC)	1.80V (min)
Number of Positions	64 Position
Clock Speed	120 MHz
RAM Memory Size	64 KB
Number of Bits	32 Bit
Power Dissipation	444 mW
Number of ADCs	3 ADC
Number of Inputs and Outputs	51 Input IO
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	444 mW
Number of DACs	2 DAC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	10.2 mm
Size-Width	10.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	3A991A2
