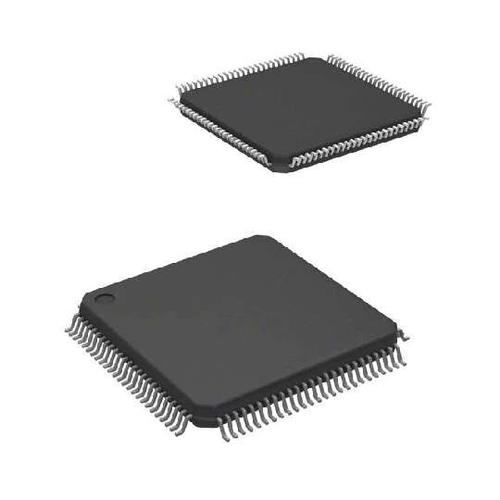

Image is for your reference only,please check specifications for details

STM32F439VGT6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC39398830
Category:
Microcontroller, MCU IC
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit STM32 ARM Cortex M4 RISC 1024KB Flash 3.3V/5V 100Pin LQFP Tray
Stock Locations:
Availability:
306 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 32.01

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F439VGT6 is a 32-bit 1024kB flash ARM Cortex-M4 high performance Microcontroller Unit features a floating point unit single precision which supports all ARM® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit which enhances application security. It incorporates high-speed embedded memories, up to 4kB of backup SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. This device offers three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers and two general-purpose 32-bit timers, a true random number generator and a cryptographic acceleration cell and also feature standard and advanced communication interfaces.
LCD parallel interface, 8080/6800 modes
Clock, reset and supply management - POR, PDR, PVD and BOR
Low power - Sleep, stop and standby modes
General-purpose DMA - 16-stream DMA controller with FIFOs and burst support
Debug mode - SWD and JTAG interfaces
Cortex-M4 trace Macrocell™
True random number generator
CRC calculation unit
RTC - sub second accuracy, hardware calendar
96-bit Unique ID
ESD sensitive device, take proper precaution while handling the device.

Show

STM32F439VGT6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Number of Positions	100 Position
Clock Speed	180 MHz
RAM Memory Size	256 KB
Number of Bits	32 Bit
Power Dissipation	465 mW
Number of Inputs and Outputs	82 Input IO
Power Dissipation (Max)	465 mW
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	5A002
