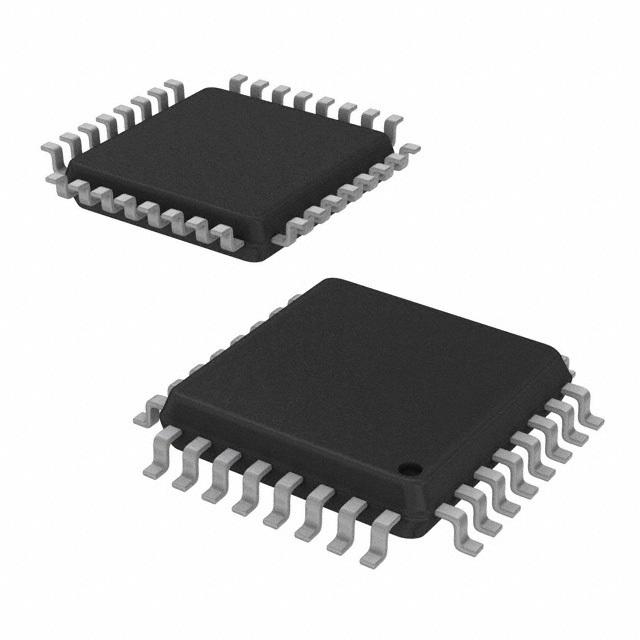

Image is for your reference only,please check specifications for details

STM8AF6246TCSSSX - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC24722841
Category:
Microcontroller, MCU IC
Package:
LQFP-32
Datasheet:
Datasheet 3D Model
Description:
MCU 8Bit STM8 CISC 16KB Flash 3.3V/5V Automotive 32Pin LQFP T/R
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.04

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM8AF6246, STM8AF6248, STM8AF6266 and STM8AF6268 automotive 8-bit microcontrollers offer from 16 to 32 Kbyte of Flash program memory and integrated true data EEPROM. They are referred to as medium density STM8A devices in STM8S series and STM8AF series 8-bit microcontrollers reference manual (RM0016).
All devices of the STM8A product line provide the following benefits: reduced system cost, performance and robustness, short development cycles, and product longevity.
The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset.
Device performance is ensured by a clock frequency of up to 16 MHz CPU and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.
Short development cycles are guaranteed due to application scalability across a common family product architecture with compatible pinout, memory map and modular peripherals. Full documentation is offered with a wide choice of development tools.
Product longevity is ensured in the STM8A family thanks to their advanced core which is made in a state-of-the art technology for automotive applications with 3.3 V to 5 V operating supply.
All STM8A and ST7 microcontrollers are supported by the same tools including STVD/STVP development environment, the STice emulator and a low-cost, third party in-circuit debugging tool.
**Key Features**
AEC-Q10x qualified
Core
Max fCPU : 16 MHz
Advanced STM8A core with Harvard architecture and 3-stage pipeline
Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark
Memories
Flash Program memory: 16 to 32 Kbyte Flash; data retention 20 years at 55 °C after 1 kcycle
Data memory: 0.5 to 1 Kbyte true data EEPROM; endurance 300 kcycle
RAM: 2 Kbyte
Clock management
Low-power crystal resonator oscillator with external clock input
Internal, user-trimmable 16 MHz RC and low-power 128 kHz RC oscillators
Clock security system with clock monitor
Reset and supply management
Wait/auto-wakeup/Halt low-power modes with user definable clock gating
Low consumption power-on and power-down reset
Interrupt management
Nested interrupt controller with 32 vectors
Up to 34 external interrupts on 5 vectors
Timers
Up to 2 general purpose 16-bit PWM timers with up to 3 CAPCOM channels each (IC, OC or PWM)
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
8-bit AR basic timer with 8-bit prescaler
Auto-wakeup timer
Window and independent watchdog timers
Communication interfaces
LINUART
LIN 2.2 compliant, master/slave modes with automatic resynchronization
SPI interface up to 8 Mbit/s or fMASTER /2
I2 C interface up to 400 Kbit/s
Analog-to-digital converter (ADC)
10-bit accuracy, 2LSB TUE accuracy, 2LSB TUE linearity ADC and up to 10 multiplexed channels with individual data buffer
Analog watchdog, scan and continuous sampling mode
I/Os
Up to 38 user pins including 10 HS I/Os
Highly robust I/O design, immune against current injection
Operating temperature up to 150 °C
Qualification conforms to AEC-Q100 rev G

Show

STM8AF6246TCSSSX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	32 Pin
Case/Package	LQFP-32
Frequency	16 MHz
RAM Memory Size	2 KB
Power Dissipation	85 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	85 mW
	Show
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
ECCN Code	EAR99
