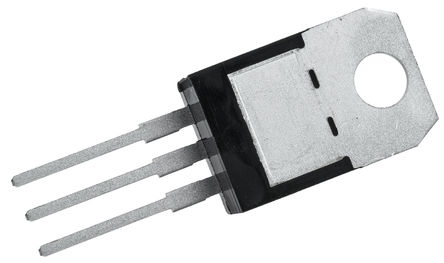

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Amplify your current using STMicroelectronics" NPN STP03D200 Darlington transistor in order to yield a higher current gain. This Darlington transistor array"s maximum emitter base voltage is 20 V, while its maximum base emitter saturation voltage is 2@0.5mA@50mA V. This product"s maximum continuous DC collector current is 0.1 A, while its minimum DC current gain is 230@20mA@10 V|200@30mA@10V. It has a maximum collector emitter saturation voltage of 2@0.5mA@50mA V. Its maximum power dissipation is 40000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a maximum collector emitter voltage of 1200 V and a maximum emitter base voltage of 20 V. This Darlington transistor array has a minimum operating temperature of -65 °C and a maximum of 150 °C.

Show

STP03D200 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	40 W
Breakdown Voltage (Collector to Emitter)	1200 V
Continuous Collector Current	0.1A
hFE Min	200 @30mA, 10V
Input Power (Max)	40 W
DC Current Gain (hFE)	200
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	40 W
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	15.75 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
