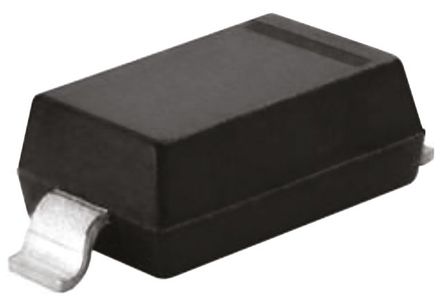

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STPS0520Z is a single Schottky Rectifier suitable for switch mode power supplies and high frequency DC to DC converters. This device is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications. Due to the small size of the package this device fits GSM and PCMCIA requirements.
Very small conduction losses
Negligible switching losses
Extremely fast switching

Show

STPS0520Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Voltage Rating (DC)	20.0 V
Current Rating	500 mA
Output Current	≤500 mA
Number of Positions	2 Position
Forward Voltage	0.385 V
Polarity	Standard
Thermal Resistance	430℃/W (RθJA)
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	5.5 A
Maximum Forward Voltage (Max)	320 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	125℃ (Max)
Junction Temperature (Max)	125 ℃
	Show
Size-Length	2.85 mm
Size-Width	1.7 mm
Size-Height	1.35 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
