Description

DESCRIPTION
Dual center tap Schottky rectifiers designed for high frequency switched mode power supplies and DC to DC converters.
These devices are intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.
FEATURES AND BENEFITS
■ LOW FORWARD VOLTAGE DROP MEANING VERY SMALL CONDUCTION LOSSES
■ LOW SWITCHING LOSSES ALLOWING HIGH FREQUENCY OPERATION
■ INSULATED PACKAGE: ISOWATT220AB, TO-220FPAB Insulating voltage = 2000V DC Capacitance = 12pF
■ AVALANCHE CAPABILITY SPECIFIED

Show

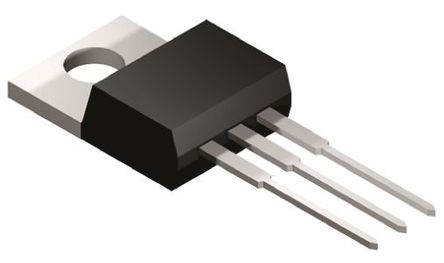

STPS20L45CT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Forward Voltage	550mV @10A
Thermal Resistance	2.2 ℃/W
Forward Current	20000 mA
Max Forward Surge Current (Ifsm)	180 A
Maximum Forward Voltage (Max)	550mV @10A
Forward Current (Max)	20 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
