Description

DESCRIPTION
Dual center tap Schottky rectifier suited for SwitchMode Power Supply and high frequency DC to DC converters. Packaged either in TO-220AB, D2PAK, I2PAK, TO-247, SOT93 or TOP-3I, this device is espe
cially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
FEATURES AND BENEFITS
■ VERY SMALL CONDUCTION LOSSES
■ NEGLIGIBLE SWITCHING LOSSES
■ EXTREMELY FAST SWITCHING
■ LOW THERMAL RESISTANCE
■ INSULATED PACKAGE: TOP-3I
Insulating voltage = 2500V RMS Capacitance = 12pF

Show

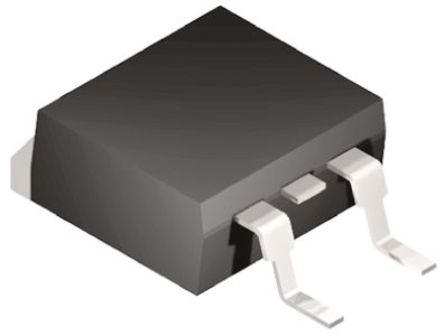

STPS3045CG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	45.0 V
Current Rating	30.0 A
Forward Voltage	570mV @15A
Forward Current	30 A
Max Forward Surge Current (Ifsm)	220 A
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	200℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	9.35 mm
Size-Height	4.6 mm
Operating Temperature	175 ℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
