Dual center tap Schottky barrier rectifier designed for high frequency Switched Mode Power Supplies and DC to DC converters. Packaged in TO-220AB, TO-247 and D2PAK these devices are intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.
FEATURES AND BENEFITS
■ LOW FORWARD VOLTAGE DROP MEANING VERY SMALL CONDUCTION LOSSES
■ LOW SWITCHING LOSSES ALLOWING HIGH FREQUENCY OPERATION
■ AVALANCHE CAPABILITY SPECIFIED

Show

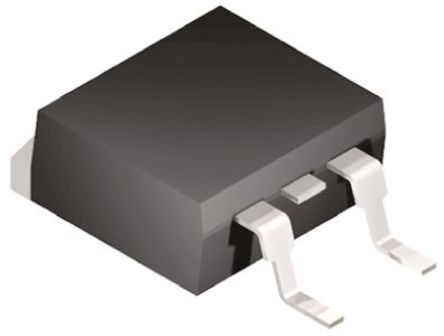

STPS40L45CG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	D2PAK-263
Forward Voltage	0.69 V
Forward Current	40000 mA
Max Forward Surge Current (Ifsm)	230 A
Forward Current (Max)	40 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	10.4 mm
Size-Width	9.35 mm
Size-Height	4.6 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
