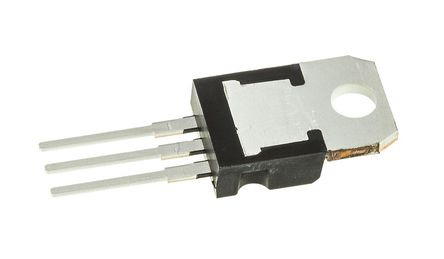

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The VNP10N07 is a monolithic device made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linearcurrent limitation and overvoltage clamp protect the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin.
- ■ LINEAR CURRENT LIMITATION
- ■ THERMAL SHUT DOWN
- ■ SHORT CIRCUIT PROTECTION
- ■ INTEGRATED CLAMP
- ■ LOW CURRENT DRAWN FROM INPUT PIN
- ■ DIAGNOSTIC FEEDBACK THROUGH INPUT PIN
- ■ ESD PROTECTION
- ■ DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING)
- ■ COMPATIBLE WITH STANDARD POWER MOSFET
- ■ STANDARD TO-220 PACKAGE
VNP10N07 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 70.0 V |
| Current Rating | 10.0 A |
| Number of Outputs | 1 Output |
| Output Current | 7 A |
| Drain to Source Resistance (on) (Rds) | 100 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 50 W |
| Breakdown Voltage (Drain to Source) | 70.0 V |
| Continuous Drain Current (Ids) | 10.0 A |
| Output Current (Max) | 7 A |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.6 mm |
| Size-Height | 15.75 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
