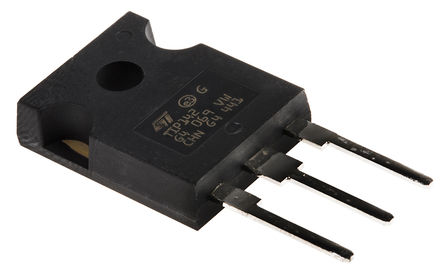

Image is for your reference only,please check specifications for details

STPS61150CW - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC16580682
Category:
Diode Array, TVS Diode Array
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Diode Schottky 150V 30A 3Pin(3+Tab) TO-247 Diode Schottky 150V 30A 3Pin(3+Tab) TO-247
Stock Locations:
Availability:
3 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STPS61150CW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	150 V
Current Rating	60.0 A
Number of Positions	3 Position
Forward Voltage	840mV @30A
Forward Current	60000 mA
Max Forward Surge Current (Ifsm)	500 A
Maximum Forward Voltage (Max)	920 mV
Forward Current (Max)	60 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
