Description

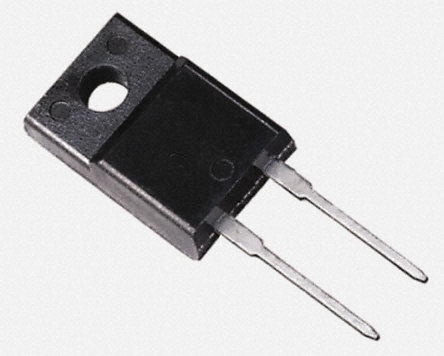

The STPS745FP is a Power Schottky Rectifier suitable for switch mode power supply and high frequency DC to DC converters. It is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications.
Very small conduction losses
Negligible switching losses
Extremely fast switching
Avalanche capability specified

Show

STPS745FP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Number of Positions	2 Position
Forward Voltage	840mV @15A
Thermal Resistance	5.5 ℃/W
Forward Current	7.5 A
Max Forward Surge Current (Ifsm)	75 A
Maximum Forward Voltage (Max)	570 mV
Forward Current (Max)	7.5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.3 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
