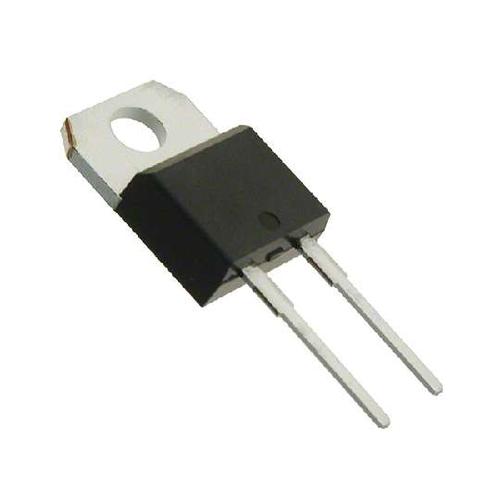

Image is for your reference only,please check specifications for details

STPSC606D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC6290603
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STPSC606D Silicon Carbide Schottky Diode, SIC, 600V Series, Single, 600V, 6A, 6NC, TO-220AC
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.88

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide bandgap material allows the design of a Schottky diode structure with a 600 V rating. Due to the Schottky construction no recovery is shown at turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature.
ST SiC diodes will boost the performance of PFC operations in hard switching conditions.
**Key Features**
No or negligible reverse recovery
Dedicated to PFC boost diode
Switching behavior independent of temperature

Show

STPSC606D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	1.7 V
Thermal Resistance	2.8 ℃/W
Reverse recovery time	0 ns
Forward Current	6 A
Max Forward Surge Current (Ifsm)	27 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	6000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	175 ℃
	Show
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
