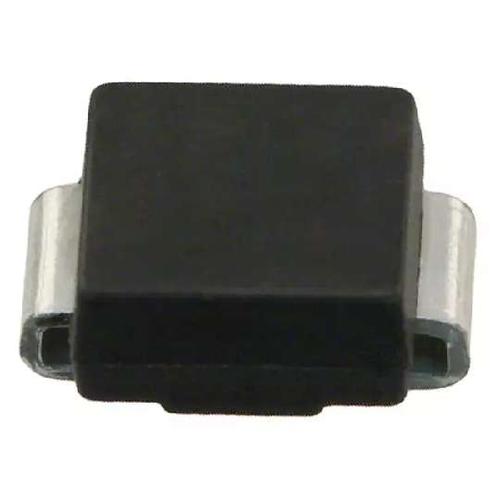

Image is for your reference only,please check specifications for details

STTH1R02U - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC50584606
Category:
TVS Diode
Package:
DO-214AA
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH1R02U Fast / Ultrafast Diode, 200V, 1.5A, Single, 1.2V, 30ns, 60A
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.31

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH1R02U is an Ultra-fast Recovery Diode uses ST"s new 200 V planar Pt™ doping technology and especially suited for switching mode base drive and transistor circuits. It is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection.
Very low conduction losses
Negligible switching losses
Low forward and reverse recovery times
High junction temperature

Show

STTH1R02U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Forward Voltage	1V @1.5A
Thermal Resistance	30 ℃/W
Reverse recovery time	30 ns
Forward Current	1.5 A
Max Forward Surge Current (Ifsm)	60 A
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	1.5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	4.6 mm
Size-Width	3.95 mm
Size-Height	2.45 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
