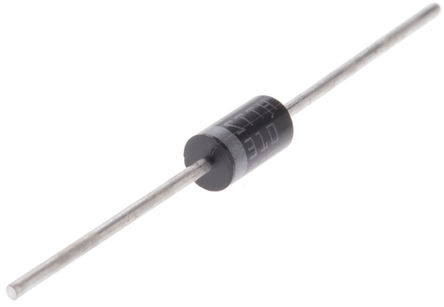

Image is for your reference only,please check specifications for details

STTH310 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC872145
Category:
TVS Diode
Package:
DO-201AD
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH310 Fast / Ultrafast Power Diode, 1kV, 3A, Single, 1.7V, 75ns, 55A
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH310 is a high-efficiency Ultra-fast Rectifier especially suited for free-wheeling, clamping, snubbering, demagnetization in power supplies and other power switching applications.
Planar technology
Low forward voltage drop
High reliability
High surge current capability
Soft switching for reduced EMI disturbances

Show

STTH310 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	1.00 kV
Current Rating	3.00 A
Output Current	≤3.00 A
Forward Voltage	1.7V @3A
Polarity	Standard
Thermal Resistance	75 ℃/W
Reverse recovery time	75 ns
Forward Current	3 A
Max Forward Surge Current (Ifsm)	55 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	3 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
