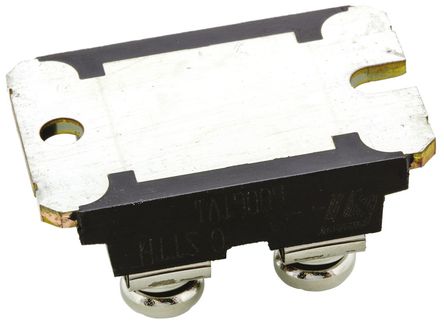

Image is for your reference only,please check specifications for details

STTH6006TV1 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC27484529
Category:
TVS Diode
Package:
ISOTOP
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH6006TV1 Diode Module, 600V, 60A, 1.4V, Dual Isolated, STTH6 Series
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 45.86

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH6006TV1 is a high voltage Ultrafast Rectifier Diode with ST Turbo2 600V technology. The device is specially suited for use in switching power supplies applications such as rectification and PFC boost diode.
Ultrafast switching
Low reverse current
Low thermal resistance
Reduces conduction and switching losses
2500V RMS Insulating voltage
45pF Capacitance

Show

STTH6006TV1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Case/Package	ISOTOP
Voltage Rating (DC)	600 V
Current Rating	60.0 A
Output Current	≤60.0 A
Forward Voltage	1.85 V
Polarity	Standard
Thermal Resistance	0.85 ℃/W
Reverse recovery time	70 ns
Forward Current	60 A
Max Forward Surge Current (Ifsm)	210 A
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	30 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	9.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
