Description

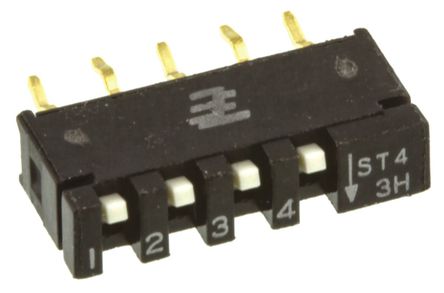

- Use TE Connectivity"s STV04 dual in-line package switch to easily control different electric paths on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.01 A @ 5VDC. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The STV04 DIP switch has a PC pin termination style. This product is 13.36 mm long, 6.2 mm tall and 3.18 mm deep. This product"s terminal pitch is 2.54 mm. The maximum DC voltage rating is 5 VDC.
STV04 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | SIP-4 |
| Voltage Rating (DC) | 5 V |
| Current Rating | 10 mA |
| Number of Positions | 4 Position |
| Contact Current Rating | 10mA @5VDC |
| Current Rating (Max) | 0.01A @5VDC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 5 VDC |
| Voltage Rating (DC Max) | 5 V |
| Maximum Contact Resistance (Max) | 50 mΩ |
| Show | |
| Size-Length | 13.36 mm |
| Size-Height | 6.2 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -30℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
