Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

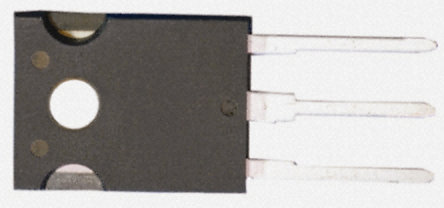

Case/Package | TO-247-3 |
Number of Channels | 1 Channel |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 6 Ω |
Polarity | N-Channel |
Power Dissipation | 140 W |
Threshold Voltage | 4 V |
Drain to Source Voltage (Vds) | 1500 V |
Breakdown Voltage (Drain to Source) | 1500 V |
Continuous Drain Current (Ids) | 1.30 A |
Rise Time | 47 ns |
Input Capacitance (Ciss) | 939pF @25V(Vds) |
Input Power (Max) | 140 W |
Fall Time | 61 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 50 ℃ |
Power Dissipation (Max) | 140W (Tc) |
Show | |
Size-Length | 15.75 mm |
Size-Width | 5.15 mm |
Size-Height | 20.15 mm |
Operating Temperature | 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
