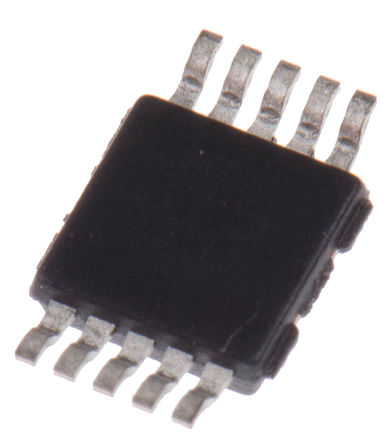

Image is for your reference only,please check specifications for details

NLAS4684MR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC7905707
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
Micro-10
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NLAS4684MR2G Analogue Switch, SPDT, 2Channels, 1Ω, 1.8V to 5.5V, Micro Bump, 10Pins
Stock Locations:
Availability:
1,132 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Ultra-Low RON, * Threshold Adjusted to Function with 1.8 V Control at VCC = 2.7-3.3 V * Single Supply Operation from 1.8-5.5 V * Low Crosstalk, * Full 0- VCC Signal Handling Capability * High Isolation, -65 dB at 100 kHz * Low Standby Current, * Low Distortion, * RON Flatness of 0.15 ohms * Pin-to-Pin Replacement for MAX4684

Show

NLAS4684MR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	Micro-10
Halogen Free Status	Halogen Free
Number of Outputs	4 Output
Contacts Type	SPDT
Supply Current	180 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	10 Position
Number of Bits	2 Bit
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	9.5 MHz
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
