STW48N60DM2 ST Microelectronics - High Voltage MOS

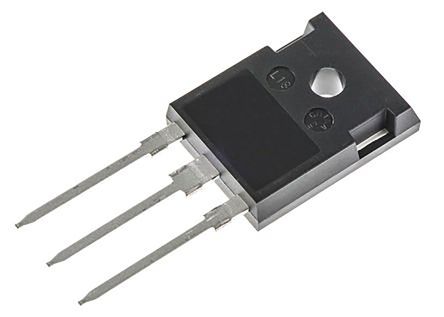

Image is for your reference only,please check specifications for details

STW48N60DM2 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC18859300
Category:
High Voltage MOS
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STW48N60DM2 – силовой MOSFET, тип Mdmesh DM2, N-канал, напряжение 40А, отключаемый ток 600В, сопротивление проводника 0.065Ом, напряжение на входе 10В, напряжение на выходе 4В.
Stock Locations:
Availability:
81 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.46

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-канальный силовой MOSFET для напряжения 600В и отключаемого тока 40А; мощность до 300Вт. Тип корпуса – TO-247.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.065 Ω
Polarity	N-Channel
Power Dissipation	300 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Rise Time	27 ns
Input Capacitance (Ciss)	3250pF @100V(Vds)
Fall Time	9.8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
