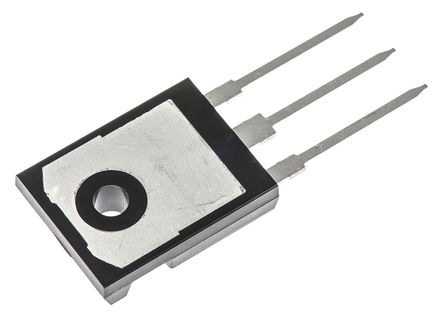

STW56N60DM2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.052 Ω
Polarity	N-Channel
Power Dissipation	360 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	50A
Rise Time	60 ns
Input Capacitance (Ciss)	4100pF @100V(Vds)
Fall Time	12 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	360W (Tc)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17
