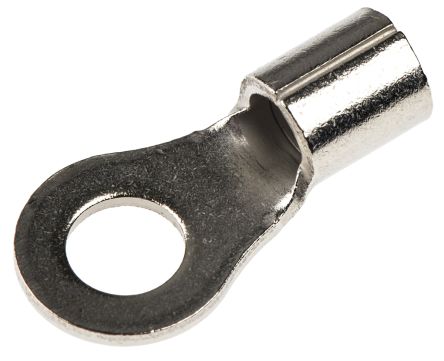

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 323062 is a Ring Tongue Terminal made of copper with nickel plated finish. The SOLISTRAND® series crimp terminal comes with an uninsulated closed barrel. It accepts 12 to 10AWG regular wire.
RING-084 Shape
343°C Operating temperature

Show

323062 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
Gender	Female
Wire Gauge	10AWG ~ 12AWG
Contact Plating	Nickel
Orientation	Straight
Termination Style	Ring Lug, Ring
Operating Temperature (Max)	343 ℃
	Show
Size-Length	19.43 mm
Size-Width	9.53 mm
Size-Thickness	0.99 mm
Color	Yellow
Contact Material	Copper
Material	Copper
Insulation Material	Non-Insulated
Operating Temperature	343 ℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
