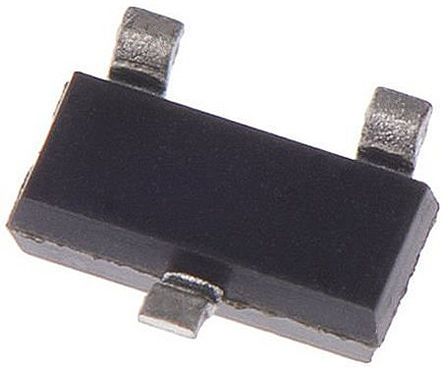

SZMMBZ27VALT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC682640
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SZMMBZ27VALT1G TVS Diode, SZMMB Series, Unidirectional, 22V, 40V, SOT-23, 3Pins
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**40W Dual Zener Transient Voltage Suppressor, ON Semiconductor**
SOT-23 Dual Common Anode Zeners for ESD Protection. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications.

Show

SZMMBZ27VALT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Operating Voltage	22 V
Breakdown Voltage	27 V
Number of Positions	3 Position
Power Dissipation	300 mW
Clamping Voltage	40 V
Test Current	1 mA
Max Breakdown Voltage	28.35 V
Peak Pulse Power	40 W
Min Breakdown Voltage	25.65 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
