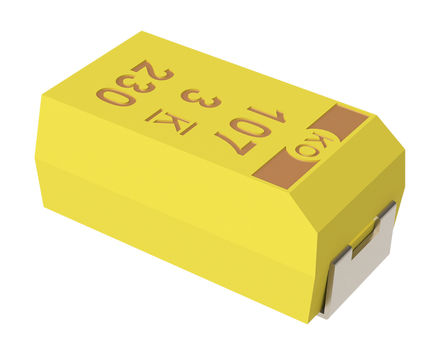

Image is for your reference only,please check specifications for details

T543X106M063AHE050 - KEMET Corporation
Manufacturer:
KEMET Corporation
ManyChip's Part#:
MC59795200
Category:
Tantalum Capacitor
Package:
2917
Datasheet:
Datasheet 3D Model
Description:
Cap Tant Solid 10uF 63V X CASE 20% (7.3 X 4.3 X 4mm) SMD 7343-43 0.05Ω 105℃ T/R
Stock Locations:
Availability:
297 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Because of its high permittivity dielectric layer, this T543X106M063AHE050 polymer electrolyte from Kemet is best-suited to pass low-frequency signals into various small products. It can withstand a voltage of 63 VDC. It has 2 terminals. This product is 7.3 mm long, 4 mm tall and 4.3 mm deep. Its capacitance value is 10uF. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its leakage current is 63 μA.

Show

T543X106M063AHE050 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	7343
Case/Package	2917
Voltage Rating (DC)	63.0 V
Capacitance	10 µF
Equivalent Series Resistance (ESR)	0.05 Ω
Capacitance Tolerance	±20 %
Ripple Current	2223 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	63 V
	Show
Size-Length	7.3 mm
Size-Width	4.3 mm
Size-Height	4 mm
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Life (Hours)	2000h @105℃
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
