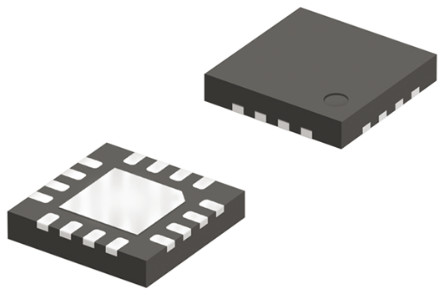

Image is for your reference only,please check specifications for details

NB6N239SMNG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC22874450
Category:
Clock Chip, Timing IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
3.3V Any Differential Clock to LVDS, ÷·1/2/4/8 and ÷·2/4/8/16 Clock Divider, QFN16, 3x3, 0.5P, 123-TUBE
Stock Locations:
Availability:
689 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NB6N239S is a high-speed, low skew clock divider with two divider circuits, each having selectable clock divide ratios; Div1/2/4/8 and Div 2/4/8/16. Both divider circuits drive LVDS compatible outputs. The NB6N239S is a member of the ECLinPS MAX family of high performance clock products.
Features
---
|
Maximum Clock Input Frequency, 3.0 GHz (1.5 GHz with Div 1)
Input Compatible with LVDS/LVPECL/CML/HSTL
120ps Typical Rise/Fall Times
< 5 ps Typical Within Device Output Skew
Example; 622.08 MHz Input Generates 38.88 MHz to 622.08 MHz outputs
Internal 50Ω Termination Provided
< 2ps RMS Random Clock Jitter
Divide-by-1 Edge of QA Aligned to QB Divided Output
Operating Range: VCC = 3.0 V to 3.465V with GND = 0
Master Reset for Synchronization of Multiple Chips
VBBAC Reference Output
Synchronous Output Disable/Enable
Pb-Free Packages are Available
