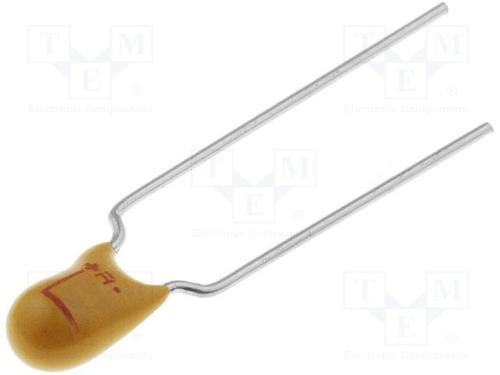

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This TAP107K020CCS tantalum solid capacitor from AVX provides a high capacitance per volume, as well as a lower footprint design. Users like its outside bend wire form. It can withstand a voltage of 20 VDC. This part has a pitch of 5 mm. Its leakage current is 16 μA. This solid capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 10%. This product is 16(Max) mm tall with a diameter of 9(Max) mm. The TAP107K020CCS solid capacitor has a radial termination style. Its capacitance value is 100uF.

Show

TAP107K020CCS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Voltage Rating (DC)	20.0 V
Operating Voltage	20 VDC
Capacitance	100 µF
Equivalent Series Resistance (ESR)	600 mΩ
Capacitance Tolerance	±10 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	20 V
	Show
Size-Height	16 mm
Size-Diameter	8.89 mm
Dielectric Material	Tantalum
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
