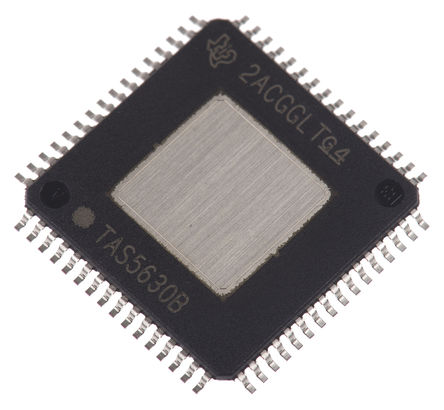

TAS5630BPHD - TI
Manufacturer:
TI
ManyChip's Part#:
MC41710762
Category:
Audio Amplifier IC
Package:
HTQFP-64
Datasheet:
Datasheet 3D Model
Description:
Audio Amp Speaker 1CH Mono/2CH Stereo/4CH Stereo 480W Class-D 64Pin HTQFP EP
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TAS5630BPHD is a high-performance analog-input Class D Amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300W achievable output power levels are dependent on the thermal configuration of the target application. A high-performance thermal interface material between the exposed package heat slug and the heat sink should be used to achieve high output power levels. Stereo into 4R to 8R speakers from a single 50V supply. PurePath HD technology enables traditional AB-amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class-D amplifier. Unlike traditional class-D amplifier, the distortion curve does not increase until the output levels move into clipping. PurePath HD technology enables lower idle losses, making the device even more efficient. When coupled with TI"s class-G power-supply reference design for TAS563x, industry-leading levels of efficiency can be achieved.
Signal bandwidth up to 80kHz for high-frequency content from high-definition sources
Click- and pop-free start-up
Self-protection design with error reporting
EMI compliant when used with recommended system design
High efficiency power stage (>88%) with 60mR output MOSFETs
Ultralow 0.03% THD at 1W into 4R
Flat THD at all frequencies for natural sound
80dB PSRR (BTL, no input signal)
>100dB (A weighted) SNR
Green product and no Sb/Br

Show

TAS5630BPHD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	HTQFP-64
Number of Channels	2 Channel
Number of Positions	64 Position
Power Dissipation	2.7 W
Quiescent Current	13.3 mA
Output Power	300 W
Output Current (Max)	9 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	2700 mW
Supply Voltage	10.8V ~ 13.2V
Supply Voltage (Max)	52.5 V
Supply Voltage (Min)	25 V
	Show
Size-Length	14.05 mm
Size-Width	14.05 mm
Size-Height	1.05 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
