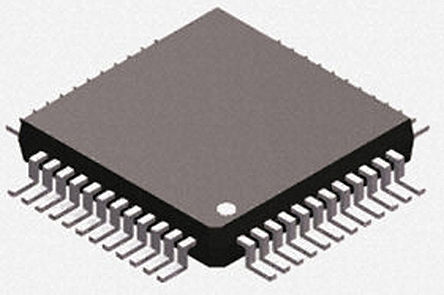

TAS5717PHPR - TI
Manufacturer:
TI
ManyChip's Part#:
MC6942538
Category:
Audio Amplifier IC
Package:
HTQFP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TAS5717PHPR Audio Power Amplifier, D, 2Channel, 15W, 3V to 3.6V, TQFP, 48Pins
Stock Locations:
Availability:
275 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TAS5717/TAS5719 is a 10-W/15-W, efficient, digital audio-power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
FEATURES
• Audio Input/Output
– TAS5717 Supports 2×10 W and TAS5719 Supports 2×15 W Output
– Wide PVDD Range, From 4.5 V to 26 V
– Efficient Class-D Operation Eliminates Need for Heatsinks
– Requires Only 3.3 V and PVDD
– One Serial Audio Input (Two Audio Channels)
– I2C Address Selection via PIN (Chip Select)
– Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
– External Headphone-Amplifier Shutdown Signal
– Integrated CAP-Free Headphone Amplifier
– Stereo Headphone (Stereo 2-V RMS Line Driver) Outputs
• Audio/PWM Processing
– Independent Channel Volume Controls With 24-dB to Mute
– Programmable Two-Band Dynamic Range Control
– 14 Programmable Biquads for Speaker EQ
– Programmable Coefficients for DRC Filters
– DC Blocking Filters
– 0.125-dB Fine Volume Support
• General Features
– Serial Control Interface Operational Without MCLK
– Factory-Trimmed Internal Oscillator for Automatic Rate Detection
– Surface Mount, 48-Pin, 7-mm × 7-mm HTQFP Package
– AD, BD, and Ternary PWM-Mode Support
– Thermal and Short-Circuit Protection
• Benefits
– EQ: Speaker Equalization Improves Audio Performance
– DRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode Listening
– DirectPath Technology: Eliminates Bulky DC Blocking Capacitors
– Stereo Headphone/Stereo Line Drivers:
Adjust Gain via External Resistors,
Dedicated Active Headpone Mute Pin, High
Signal-to-Noise Ratio
– Two-Band DRC: Set Two Different Thresholds for Low- and High-Frequency Content

Show

TAS5717PHPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	HTQFP-48
Supply Current	34 mA
Number of Channels	2 Channel
Number of Positions	48 Position
Output Power	15 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 3.6V
	Show
Size-Length	7.2 mm
Size-Width	7.2 mm
Size-Height	1.05 mm
Operating Temperature	0℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
