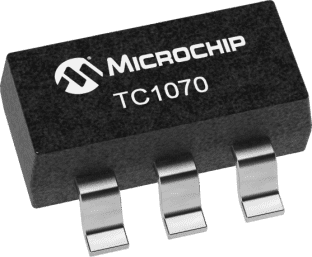

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TC1070 Low Dropout Voltage Regulator
TC1070VCT713 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 2.70V (min) |
| Output Voltage | 1.165V ~ 5.5V |
| Output Current | 50 mA |
| Quiescent Current | 50.0 µA |
| Output Capacitor Type | Tantalum |
| voltage rating | 0.002V @0.1mA,0.085V @50mA,0.065V @20mA |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 2.7 V |
| Output Current (Max) | 50 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.7V ~ 6V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 1.8 mm |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
