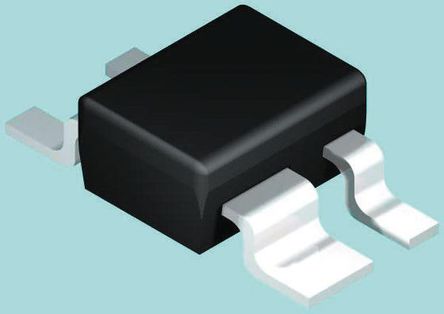

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BCM61B is a dual NPN matched double Bipolar Transistor Array in a small surface-mount plastic package. It has matched version of BCV61 and suitable for current mirror and differential amplifier.
Current gain matching
Dual PNP equivalent to BCM62B

Show

BCM61B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-143
Number of Positions	4 Position
Polarity	NPN
Power Dissipation	390 mW
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.1A
hFE Min	200
DC Current Gain (hFE)	290
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	390 mW
	Show
Size-Length	3 mm
Size-Width	1.4 mm
Size-Height	1.1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
