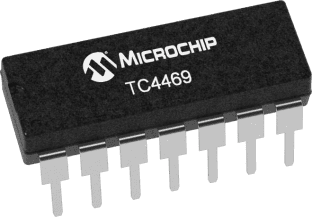

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC4469CPD is a logic-input CMOS Quad Driver for driving all four MOSFETs in an H-bridge and CCD driver. Each driver has been equipped with a two-input logic gate for added flexibility. The TC446X driver can source up to 250mA into loads referenced to ground. Heavily loaded clock lines, coaxial cables and piezoelectric transducers can all be easily driven with the 446X series drivers. The TC446X series will not latch under any conditions within their power and voltage ratings. It is not subject to damage when up to 5V of noise spiking (either polarity) occurs on the ground line. It can accept up to half an amp of inductive kickback current (either polarity) into their outputs without damage or logic upset. In addition, all terminals are protected against ESD to at least 2000V. The TC4469 device is very robust and highly latch-up resistant. They can tolerate up to 5V of noise spiking on the ground line and can handle up to 0.5A of reverse current on the driver outputs.
AND/INV input logic
2kV ESD protection on all pins
ESD sensitive device, take proper precaution while handling the device.

Show

TC4469CPD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	4.50V (min)
Operating Voltage	4.5V ~ 18V
Rise/Fall Time	15 ns
Number of Outputs	4 Output
Output Voltage	18.0 V
Output Current	1.2 A
Supply Current	4.00 mA
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	800 mW
Rise Time	25 ns
Fall Time	25 ns
Fall Time (Max)	25 ns
Fall Time (Max)	25 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	800 mW
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	19.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8541290095
ECCN Code	EAR99
