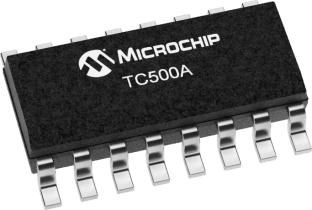

Image is for your reference only,please check specifications for details

TC500ACOE - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC13970759
Category:
Analog to Digital, ADC IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP TC500ACOE Analog to Digital Converter, Dual, 17Bit, 10 SPS, Dual (+/-), -4.5V, 7.5V, SOIC
Stock Locations:
Availability:
285 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The TC500/500A/510/514 family are precision analog front ends that implement dual slope A/D converters having a maximum resolution of 17 bits plus sign. As a minimum, each device contains the integrator, zero crossing comparator and processor interface logic. The TC500 is the base (16 bit max) device and requires both positive and negative power supplies. The TC500A is identical to the TC500, except it has improved linearity allowing it to operate to a maximum resolution of 17 bits. The TC510 adds an on board negative power supply converter for single supply operation. The TC514 adds both a negative power supply converter and a 4 input differential analog multiplexer.
FEATURES
■ Precision (up to 17 Bits) A/D Converter "Front End"
■ 3-Pin Control Interface to Microprocessor
■ Flexible: User Can Trade-Off Conversion Speed for Resolution
■ Single Supply Operation (TC510/514)
■ 4 Input, Differential Analog MUX (TC514)
■ Automatic Input Voltage Polarity Detection
■ Low Power Dissipation ........... TC500/500A: 10mW
TC510/514: 18mW
■ Wide Analog Input Range ....... ±4.2V (TC500A/510)
■ Directly Accepts Bipolar and Differential Input Signals

Show

TC500ACOE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	-4.50 V (min)
Operating Voltage	4.5V ~ 7.5V
Power Rating	10 mW
Output Voltage	900 mV
Supply Current	1 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	17 Bit
Sample Rate	10.0 Hz
Power Consumption	10 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 7.5V
Supply Voltage (Max)	7.5 V
	Show
Size-Length	10.3 mm
Size-Width	7.49 mm
Size-Height	2.31 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8542390001
ECCN Code	EAR99
