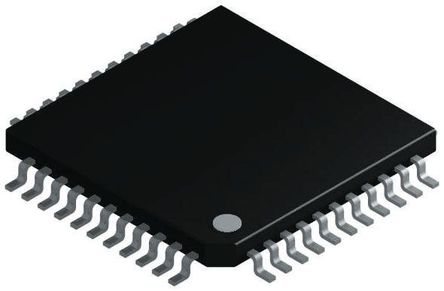

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The TC7106A and TC7107A 3-1/2 digit direct-display drive analog-to-digital converters allow existing 7106/7107 based systems to be upgraded. Each device has a preci sion reference with a 20ppm/°C max temperature coefficient. This represents a 4 to 7 times improvement over similar 3-1/2 digit converters. Existing 7106 and 7107 based systems may be upgraded without changing external passive component values. The TC7107A drives common anode light emitting diode (LED) displays directly with 8mA per segment.
- FEATURES
- ■ Internal Reference with Low Temperature Drift
- TC7106/7 .................................... 80ppm/°C Typical
- TC7106A/7A .................................. 20ppm/°C Typical
- ■ Drives LCD (TC7106) or LED (TC7107) Display Directly
- ■ Guaranteed Zero Reading With Zero Input
- ■ Low Noise for Stable Display
- ■ Auto-Zero Cycle Eliminates Need for Zero Adjustment
- ■ True Polarity Indication for Precision Null Applications
- ■ Convenient 9 V Battery Operation (TC7106A)
- ■ High Impedance CMOS Differential Inputs.... 1012Ω
- ■ Differential Reference Inputs Simplify Ratiometric Measurements
- ■ Low Power Operation ............................... 10mW
TC7107CKW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | QFP-44 |
| Supply Current | 800 µA |
| Number of Channels | 1 Channel |
| Number of Positions | 44 Position |
| Number of Bits | 3 Bit |
| Power Dissipation | 10 mW |
| Power Consumption | 1 W |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage | 5 V |
| Supply Voltage (Max) | 5 V |
| Input Voltage | 0.2V, 2V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10 mm |
| Size-Height | 2 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8542390001 |
| ECCN Code | EAR99 |
