Description
- 2-Input AND Gate
- Features
- • High Speed : tpd =7ns (typ.) at VCC= 5 V
- • Low power dissipation : ICC= 1 μA (max) at Ta = 25°C
- • High noise immunity : VNIH= VNIL= 28% VCC (min)
- • Output drive capability : 5 LSTTL Loads
- • Symmetrical Output Impedance |IOH| = IOL= 2mA (min)
- • Balanced propagation delays : tpLH ≒ tpHL
- • Wide operating voltage range : VCC = 2 to 6 V
TC7S08FU Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |

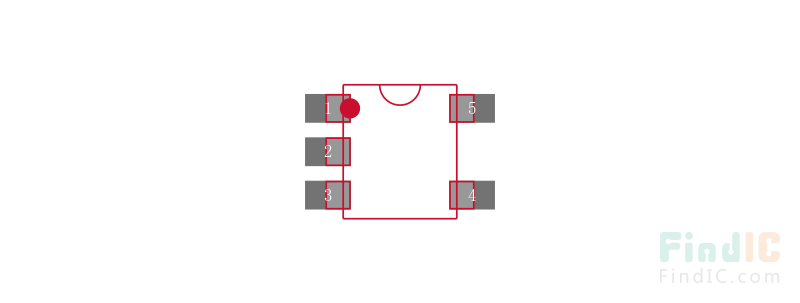

| Case/Package | SOT-353 |
| Number of Circuits | 1 Circuit |
| Number of Inputs | 2 Input |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
