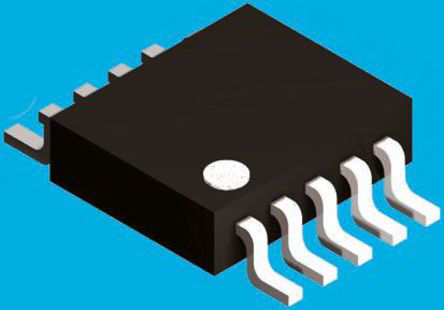

Image is for your reference only,please check specifications for details
- TDA5150 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC52496367
-
Category:RF Transmitter
-
Package:TSSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:RF Transmitter, Multichannel / Multiband, 300-928MHz, 10Pin TSSOP, T/R
-
Stock Locations:
-
Availability:214 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.97
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
TDA5150 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | TSSOP-10 |
| Frequency | 300MHz ~ 320MHz, 425MHz ~ 450MHz, 863MHz ~ 928MHz |
| Supply Current | 16 mA |
| Output Power | 10 dBm |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.9V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.9 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
