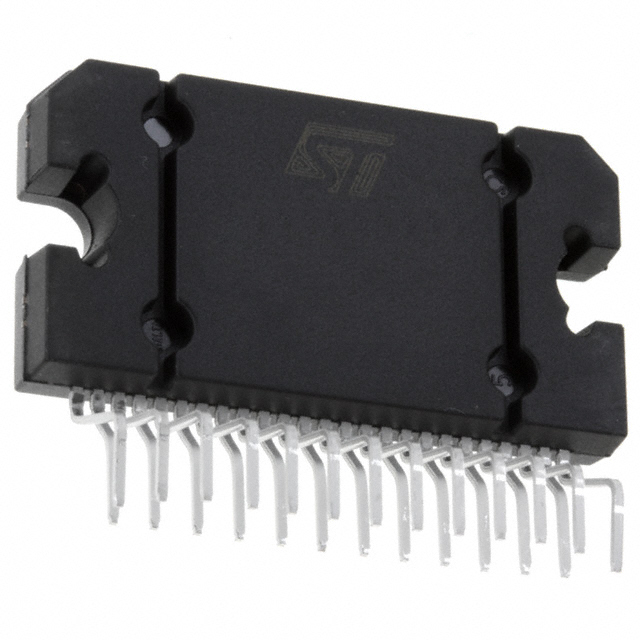

Image is for your reference only,please check specifications for details
- TDA7382 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC142350924
-
Category:Audio Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 4CH Stereo 30W Class-AB 25Pin FLEXIWATT(Vertical) Tube
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)
TDA7382 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 25 Pin |
| Case/Package | FLEXIWATT-25 |
| Supply Voltage (DC) | 50.0 V |
| Output Voltage | 100 mV |
| Output Current | 5500 mA |
| Supply Current | 5.50 A |
| Number of Channels | 4 Channel |
| Power Dissipation | 80000 mW |
| Output Power | 30 W |
| Gain | 26 dB |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Supply Voltage | 8V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Show | |
| Size-Length | 29.23 mm |
| Size-Width | 4.5 mm |
| Size-Height | 15.7 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
