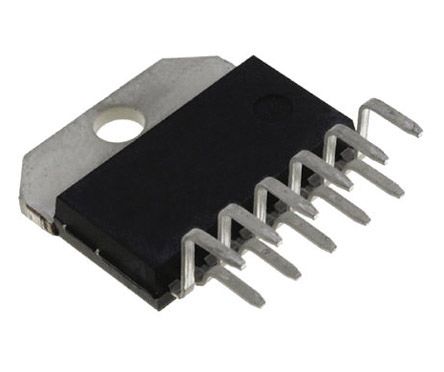

Image is for your reference only,please check specifications for details
- TDA7391 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC9739821
-
Category:Audio Amplifier IC
-
Package:Multiwatt-11
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 1CH Mono 32W Class-AB 11Pin(11+Tab) MULTIWATT V Tube
-
Stock Locations:
-
Availability:1,381 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Audio Amp Speaker 1-CH Mono 32W Class-AB Automotive 11-Pin(11+Tab) MULTIWATT V Tube
TDA7391 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | Multiwatt-11 |
| Supply Voltage (DC) | 18.0 V |
| Supply Current | 150 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 11 Position |
| Power Dissipation | 43 W |
| Common Mode Rejection Ratio | 65 dB |
| Quiescent Current | 60.0 mA |
| Gain Bandwidth Product | 75 kHz |
| Output Power | 35 W |
| Gain | 30 dB |
| Input Bias Current | 10000 nA |
| Output Current (Max) | 6000 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 43000 mW |
| Minimum CMRR Range | 65 dB |
| Supply Voltage | 8V ~ 18V |
| Show | |
| Size-Length | 20.2 mm |
| Size-Width | 5 mm |
| Size-Height | 17.75 mm |
| Operating Temperature | -40℃ ~ 105℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
