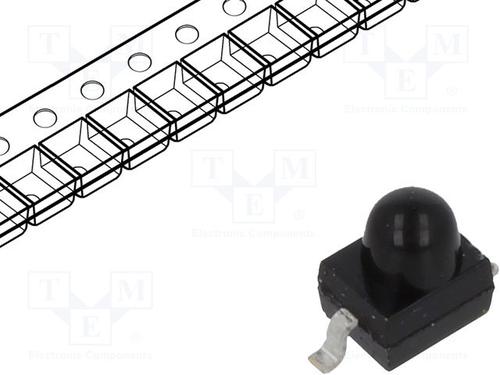

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 900 nm 4 ns ± 15° Half Sensitivity High Speed Silicon PIN Photodiode SMD-2
TEMD1020 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD-2 |
| Rise/Fall Time | 4 ns |
| Number of Positions | 2 Position |
| Forward Voltage | 1.3 V |
| Wavelength | 900 nm |
| Peak Wavelength | 940 nm |
| Power Dissipation | 75 mW |
| Rise Time | 4 ns |
| Reverse Breakdown Voltage | 60 V |
| Maximum Forward Voltage (Max) | 1.3 V |
| Fall Time | 4 ns |
| Fall Time (Max) | 4 ns |
| Fall Time (Max) | 4 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 75 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
