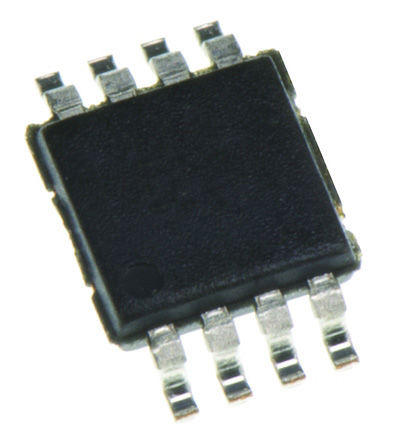

Image is for your reference only,please check specifications for details

THS3061DGN - TI
Manufacturer:
TI
ManyChip's Part#:
MC51313671
Category:
Operational Amplifier, OP Amp IC
Package:
PowerPad-MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS3061DGN Operational Amplifier, 1 Amplifier, 300MHz, 7kV/µs, 10V to 30V, ± 5V to ± 15V, HMSOP, 8Pins
Stock Locations:
Availability:
327 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.05

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS3061 (single) and THS3062 (dual) are high-voltage, high slew-rate current feedback amplifiers utilizing Texas Instruments" BICOM-1 process. Designed for low-distortion with a high slew rate of 7000 V/µs, the THS306x amplifiers are ideally suited for applications requiring large, linear output signals such as video line drivers and VDSL line drivers.
The THS3061 and THS3062 provide well-regulated ac performance characteristics with power supplies ranging from ±5-V operation up to ±15-V supplies. Most notably, the 0.1-dB flat bandwidth is exceedingly high, reaching beyond 100 MHz, and the THS306x has less than 0.3 dB of peaking in the frequency response when configured in unity gain. The unity-gain bandwidth of 300 MHz provides excellent distortion characteristics at 10 MHz. The flexibility of the current-feedback design allows a 220-MHz, –3-dB bandwidth in a gain of 10, indicating excellent performance even at high gains.
The THS306x consumes 8.3 mA per-channel quiescent current at room temperature, and has the capability of producing up to ±145 mA of output current. The THS3061 is packaged in an 8-pin SOIC and an 8-pin MSOP with PowerPAD. The THS3062 is available in an 8-pin SOIC with PowerPAD and an 8-pin MSP with PowerPAD.

Show

THS3061DGN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Supply Current	8.3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1.71 W
Common Mode Rejection Ratio	60 dB
Input Offset Drift	10.0 µV/K
Bandwidth	300 MHz
Slew Rate	7.00 kV/μs
Gain Bandwidth Product	300 MHz
Input Offset Voltage	700 µV
Input Bias Current	6 µA
Available Channels	S, D
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	300 MHz
Gain Bandwidth	2.2 GHz
Power Dissipation (Max)	1710 mW
Minimum CMRR Range	60 dB
Supply Voltage (Max)	30 V
Supply Voltage (Min)	10 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
