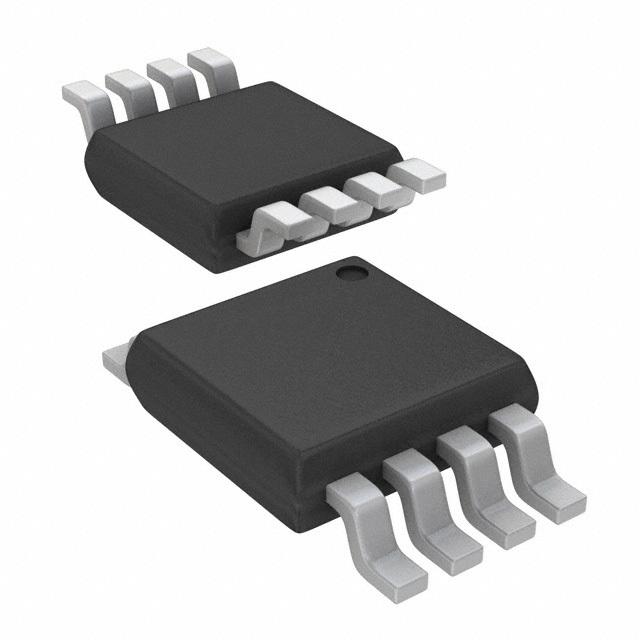

Image is for your reference only,please check specifications for details

THS4130IDGK - TI
Manufacturer:
TI
ManyChip's Part#:
MC9843804
Category:
Amplifier, Buffer IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS4130IDGK Differential Amplifier, High-Speed, 1 Amplifiers, 2mV, 150MHz, -40℃, 85℃
Stock Locations:
Availability:
316 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 21.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The THS413x is one in a family of fully-differential input/differential output devices fabricated using Texas Instruments" state-of-the-art BiComI complementary bipolar process. The THS413x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
FEATURES
• High Performance
– 150 MHz, –3 dB Bandwidth (VCC= ±15 V)
– 51 V/µs Slew Rate
– –100 dB Third Harmonic Distortion at 250 kHz
• Low Noise
– 1.3 nV/√Hz Input-Referred Noise
• Differential-Input/Differential-Output
– Balanced Outputs Reject Common-Mode Noise
– Reduced Second-Harmonic Distortion Due to Differential Output
• Wide Power-Supply Range
– VCC= 5 V Single Supply to ±15 V Dual Supply
• ICC(SD) = 860 µA in Shutdown Mode (THS4130)
APPLICATIONS
• Single-Ended To Differential Conversion
• Differential ADC Driver
• Differential Antialiasing
• Differential Transmitter And Receiver
• Output Level Shifter

Show

THS4130IDGK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Output Current	45mA @5V
Supply Current	12.3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	385 mW
Common Mode Rejection Ratio	80 dB
Input Offset Drift	4.50 µV/K
Bandwidth	150 MHz
Slew Rate	52.0 V/μs
Gain Bandwidth Product	225 MHz
Input Offset Voltage	2 mV
Input Bias Current	2 µA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	150 MHz
Gain Bandwidth	225 MHz
Power Dissipation (Max)	385 mW
Minimum CMRR Range	80 dB
Supply Voltage (Max)	30V ~ 50V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
