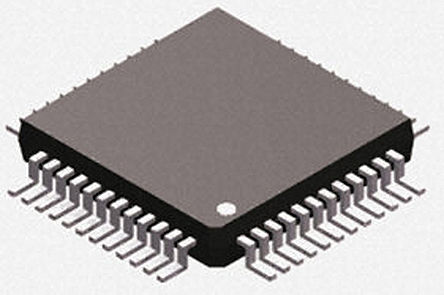

Image is for your reference only,please check specifications for details
- THS8135PHP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC10913869
-
Category:Digital to Analog, DAC IC
-
Package:HTQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter, 10Bit, 240MSPS, Parallel, 3V to 3.6V, QFP, 48Pins
-
Stock Locations:
-
Availability:220 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.02
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The THS8135 is a general-purpose triple high-speed D/A converter optimized for use in video/graphics applications. The device operates from 3.3-V analog and 1.8-V digital supplies. The THS8135 performance is assured at a sampling rate up to 240 MSPS. The THS8135 consists of three 10-bit D/A converters and additional circuitry for bi-level/tri-level sync and blanking level generation. By providing a dc offset for the lowest video amplitude output in video DAC mode, the device can insert a (negative) bi-level or (negative/positive) tri-level sync on either only the green/luminance (sync-on-green/sync-on-Y) channel or on all channels for video applications. A generic DAC mode avoids this dc offset, making this device suitable for non-video applications as well.
- The THS8135 is a footprint-compatible functional upgrade to the THS8133. In addition, the THS8135 allows a higher update rate for oversampled video digitizing for all PC graphics formats up to UXGA (1600x1200) resolution at 85 Hz and all practical digital TV formats including HDTV. The support for oversampling significantly reduces the complexity of the analog reconstruction filter required behind the DAC.
- FEATURES
- • Triple 10-Bit D/A Converters
- • 240-MSPS Operation
- • YPbPr/RGB Configurable Blanking Levels, Correctly Positioned for Either Full (0-1023) or Video (ITU-R.BT601) Compliant Input Code Ranges
- • Generic Triple DAC Mode for Non-Video Applications
- • Direct Drive of Double-Terminated 75-Ω Load Into Standard Video Levels
- • 3x10 Bit 4:4:4, 2x10 Bit 4:2:2 or 1x10 Bit 4:2:2 (ITU-R.BT656) Multiplexed YCbCr/GBR Input Data Formats
- • Bi-Level (EIA) or Tri-Level (SMPTE) Sync Generation
- • Integrated Sync-On-Green/Luminance or Sync On-All Composite Sync Insertion
- • Internal Voltage Reference
- • Low-Power Operation From 3.3-V Analog and 1.8-V Digital Suply Levels
- APPLICATIONS
- • High-Definition Television (HDTV) Set-Top Boxes/Receivers/Displays
- • High-Resolution Image Processing
THS8135PHP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | HTQFP-48 |
| Supply Voltage (DC) | 3.30V (max) |
| Number of Outputs | 3 Output |
| Supply Current | 114 mA |
| Number of Channels | 3 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 10 Bit |
| Power Dissipation | 0.394 W |
| Sample Rate | 240 Msps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 394 mW |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.3 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 7.2 mm |
| Size-Width | 7.2 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
