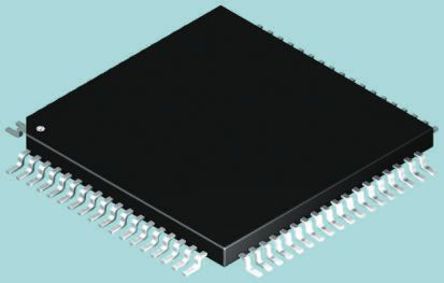

Image is for your reference only,please check specifications for details

THS8200PFP - TI
Manufacturer:
TI
ManyChip's Part#:
MC16076722
Category:
Digital to Analog, DAC IC
Package:
HTQFP-80
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS8200PFP Digital to Analog Converter, 11Bit, 205MSPS, Serial, 3V to 3.6V, HTQFP, 80Pins
Stock Locations:
Availability:
859 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Thanks to Texas Instruments and their THS8200PFP DAC converter, you"ll easily be able to convert computerized digital information and translate it into perceptible analog data. This device"s digital interface is serial (i2c). It has a voltage output. This DAC has a resolution of 11bit. This DAC has a temperature range of 0 °C to 70 °C. This device uses analog and digital power.

Show

THS8200PFP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	80 Pin
Case/Package	HTQFP-80
Number of Outputs	3 Output
Supply Current	162 mA
Number of Channels	3 Channel
Number of Positions	80 Position
Number of Bits	10 Bit
Power Dissipation	0.735 W
Sample Rate	205 Msps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	735 mW
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	12.2 mm
Size-Width	12.2 mm
Size-Height	1.05 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
