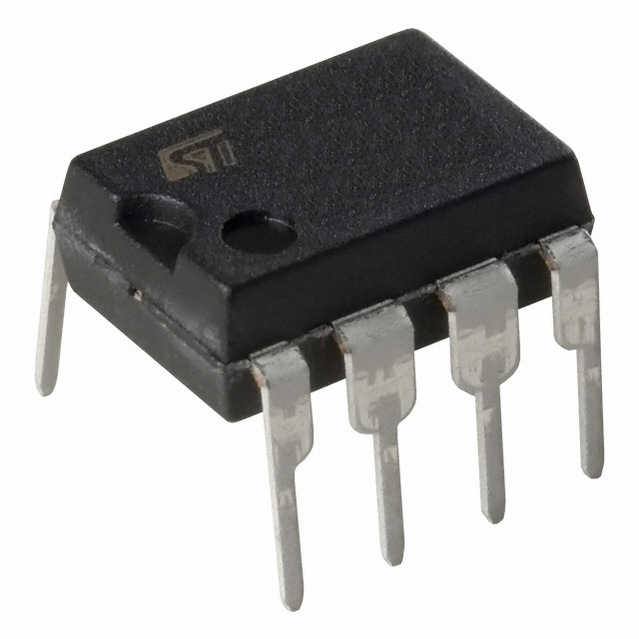

Image is for your reference only,please check specifications for details
- TL062IN - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC160169576
-
Category:Amplifier, Buffer IC
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:TL062 Series 36V 1MHz Low Power JFET Dual Operational Amplifier - DIP-8
-
Stock Locations:
-
Availability:257 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.88
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TL062, TL062A and TL062B devices are high-speed JFET input single operational amplifiers. Each of these JFET input operational amplifiers incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.
- The devices feature high slew rates, low input bias and offset currents, and a low offset voltage temperature coefficient.
- Features
- ■ Very low power consumption: 200 µA
- ■ Wide common-mode (up to VCC+) and differential voltage ranges
- ■ Low input bias and offset currents
- ■ Output short-circuit protection
- ■ High input impedance JFET input stage
- ■ Internal frequency compensation
- ■ Latch up free operation
- ■ High slew rate: 3.5 V/µs
TL062IN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Current | 200 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 80 dB |
| Slew Rate | 3.50 V/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 3 mV |
| Input Bias Current | 30 pA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Gain Bandwidth | 1 MHz |
| Power Dissipation (Max) | 680 mW |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 6 V |
| Show | |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
