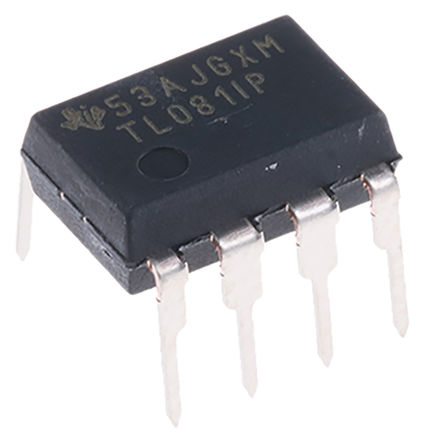

Image is for your reference only,please check specifications for details

TL081IP - TI
Manufacturer:
TI
ManyChip's Part#:
MC9695837
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TL081IP Operational Amplifier, Single, 1 Amplifier, 3MHz, 13V/µs, 7V to 36V, ± 18V, DIP, 8Pins
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.57

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL081IP is a single JFET-input Operational Amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low offset-voltage temperature coefficient, low input bias and offset currents.
Wide common-mode and differential voltage ranges
Output short-circuit protection
High input impedance - JFET input stage
Latch-up-free operation
Common-mode input voltage range includes VCC+
1.4mA/channel Typical low power consumption
30pA Typical low input bias current
5pA Typical low input offset current
0.003% Typical low total harmonic distortion

Show

TL081IP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	15.0 V
Supply Current	1.4 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	680 mW
Common Mode Rejection Ratio	75 dB
Input Offset Drift	18.0 µV/K
Bandwidth	3 MHz
Slew Rate	13.0 V/μs
Gain Bandwidth Product	3 MHz
Input Offset Voltage	3 mV
Input Bias Current	30 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Power Dissipation (Max)	680 mW
Minimum CMRR Range	75 dB
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
