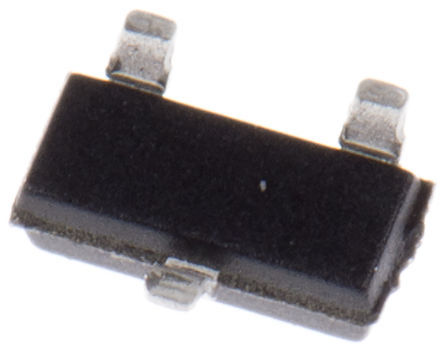

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL1431 is a programmable shunt voltage reference with guaranteed temperature stability over the entire operating temperature range.
The output voltage may be set to any value between 2.5 V and 36 V with two external resistors.
The TL1431 operates with a wide current range from 1 to 100 mA with a typical dynamic impedance of 0.2 Ω.
**Key Features**
Adjustable output voltage: VREF to 36 V
Sink current capability: 1 to 100 mA
Typical output impedance: 0.22 Ω
0.4% and 0.25% voltage precision
Automotive temp. range - 40 °C to +125 °C

Show

TL1431ACL3T Specifications
