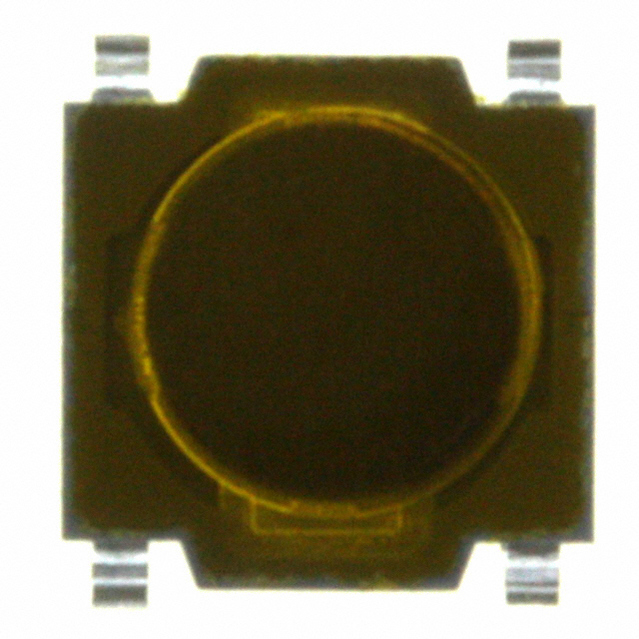

Image is for your reference only,please check specifications for details
- TL3315NF100Q - E-Switch
-
Manufacturer:E-Switch
-
ManyChip's Part#:MC2223030
-
Category:Tactile Switch, Jog Switch
-
Package:4.50mmx4.50mm
-
Datasheet:Datasheet 3D Model
-
Description:Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 15VDC, 1.27N, Solder Terminal, Surface Mount-straight
-
Stock Locations:
-
Availability:9,360 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.12
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Switch Tactile N.O. SPST Flush Round Button Gull Wing 0.05A 15VDC 0.98N SMD
TL3315NF100Q Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 4.50mmx4.50mm |
| Voltage Rating (DC) | 15 V |
| Current Rating | 50 mA |
| Insulation Resistance | 50 MΩ |
| Contacts Type | SPST |
| Voltage Rating | 15 V |
| Show | |
| Size-Height | 0.6 mm |
| Contact Material | Silver |
| Operating Temperature | -20℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536509065 |
| ECCN Code | EAR99 |
