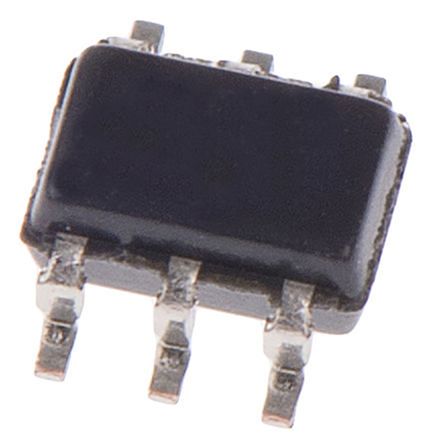

Image is for your reference only,please check specifications for details

TL431AIDCKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC20758800
Category:
Voltage Reference
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
Shunt Voltage Reference Adjustable Precision Shunt Regulator V-Ref Adjustable 2.495V to 36V 100mA 6Pin SC-70 T/R
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.44

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TL431 and TL432 devices are three-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors. These devices have a typical output impedance of 0.2 Ω.
Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies. The TL432 device has exactly the same functionality and electrical specifications as the TL431 device, but has different pinouts for the DBV, DBZ, and PK packages.
Features
• Reference Voltage Tolerance at 25°C
– 0.5% (B Grade)
– 1% (A Grade)
– 2% (Standard Grade)
• Adjustable Output Voltage: Vref to 36 V
• Operation From −40°C to 125°C
• Typical Temperature Drift (TL431B)
– 6 mV (C Temp)
– 14 mV (I Temp, Q Temp)
• Low Output Noise
• 0.2-Ω Typical Output Impedance
• Sink-Current Capability: 1 mA to 100 mA
Applications
• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Flyback SMPSs
• Zener Replacement
• Voltage Monitoring
• Comparator with Integrated Reference

Show

TL431AIDCKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Capacitance Tolerance	±1 %
Input Voltage (DC)	2.50V ~ 36.0V
Output Voltage	2.495V ~ 36V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	6 Position
Input Voltage (Max)	37 V
Output Voltage (Max)	36 V
Output Voltage (Min)	2.495 V
Output Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	37 V
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Temperature Coefficient	±92 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
