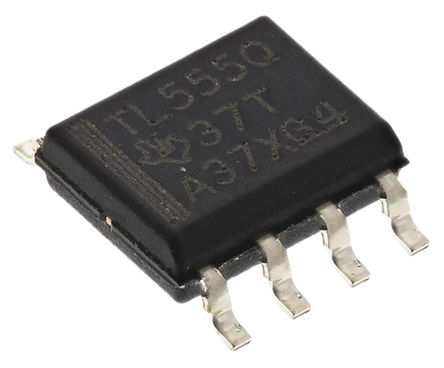

Image is for your reference only,please check specifications for details

TLC555QDR - TI
Manufacturer:
TI
ManyChip's Part#:
MC11873893
Category:
Clock Chip, Timing IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Timer, Oscillator & Pulse Generator IC, LinCMOS, 2.1MHz, Astable, 5V to 15V, SOIC-8
Stock Locations:
Availability:
1,706 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.03

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC555QDR is a monolithic Timing Circuit fabricated using the TI LinCMOS™ process. The timer is fully compatible with CMOS, TTL and MOS logic and operates at frequencies up to 2MHz. Because of its high input impedance, this device uses smaller timing capacitors than those used by the NE555. As a result, more accurate time delays and oscillations are possible. Power consumption is low across the full range of power supply voltage. Like the NE555, the TLC555 has a trigger level equal to approximately one-third of the supply voltage and a threshold level equal to approximately two-thirds of the supply voltage. These levels can be altered by use of the control voltage terminal (CONT). When the trigger input (TRIG) falls below the trigger level, the flip-flop is set and the output goes high. If TRIG is above the trigger level and the threshold input (THRES) is above the threshold level, the flip-flop is reset and the output is low.
Very low power consumption
Capable of operation in astable mode
CMOS Output capable of swinging rail to rail
High output-current capability
Output fully compatible with CMOS, TTL and MOS
Low supply current reduces spikes during output transitions
Functionally interchangeable with the NE555, has same pin-out
ESD protection exceeds 2000 V per MIL-STD-883C, method 3015.2
Green product and no Sb/Br

Show

TLC555QDR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	2.1 MHz
Supply Voltage (DC)	5.00V (min)
Supply Current	360 µA
Number of Positions	8 Position
Power Dissipation	0.725 W
Quiescent Current	250 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	725 mW
Supply Voltage	5V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	5 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
